Show All Front Wheel Drive Wheelchairs

2019 Permobil FWD F5 Corpus
Power Wheelchair

2019 Permobil FWD F5 Corpus

Strength and stability

Power meets performance on the new F5 Corpus power wheelchair with a blazing 10 km/h top end speed and upgraded ComfortRide Pro suspension. All-wheel independent, fully adjustable, oil dampened shocks provide the ultimate in ride comfort while helping to reduce vibrations that can transfer from terrain up to user.

Lightning Mobility

Product Information

Details

Features

Accessories

Specifications

Frame Colours

Details

Experience enhanced vibration reduction driving in all seat positions including an unprecedented 14” ActiveHeight seat elevation. Climb and reach higher with increased obstacle negotiation, exceptional motor torque and enhanced stability allowing up to 45° of ActiveReach forward tilt functionality. Standard performance options include aggressive tread tires, caster mud guard protection and 3 premium metallic colours.

The Corpus® Seating System

Our new dual density backrest foam promotes greater surface area contact while the redesigned Ergo seat pelvic well insert can help pressure redistribution and reduce peak pressures. Stretch-Air covers offer a breathable, moisture resistant fabric material to enhance comfort and help protect underlying foam.

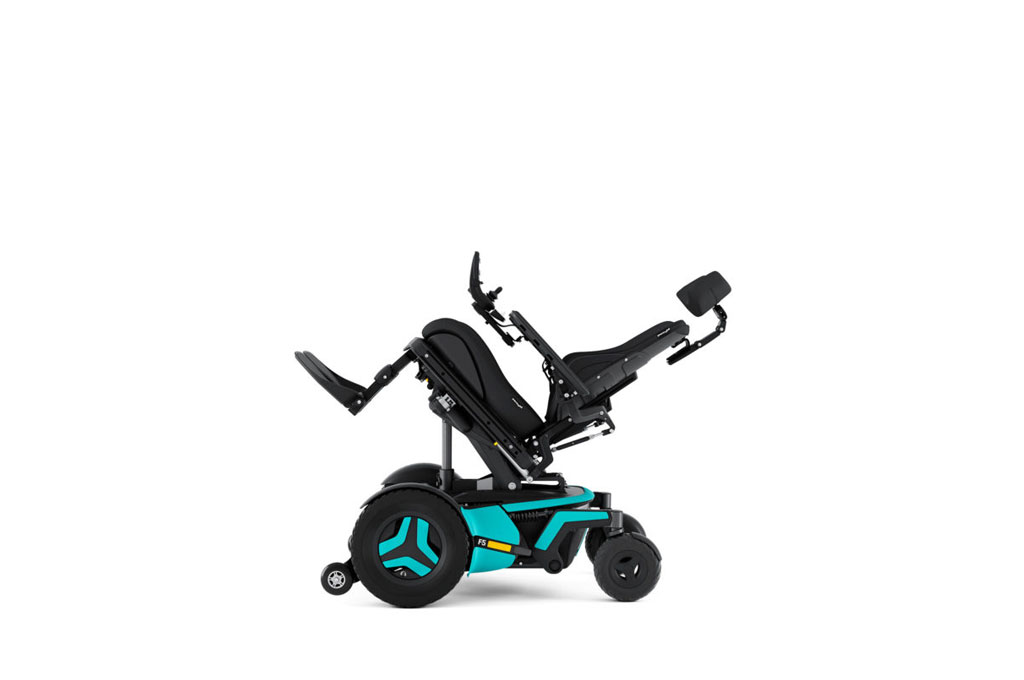

Enhanced tilt functionality.

With optional 10º, 20º, and 45º anterior tilt, while maintaining 50º posterior tilt.

Drive mode: Front wheel drive
Driving range: 620km
Environment: From tight indoors, urban streetscapes to off-road

Features

ComfortRide Pro Suspension

A true fully independent suspension allows the F5 Corpus to absorb everyday terrain and obstacles with minimal translation to the end user.

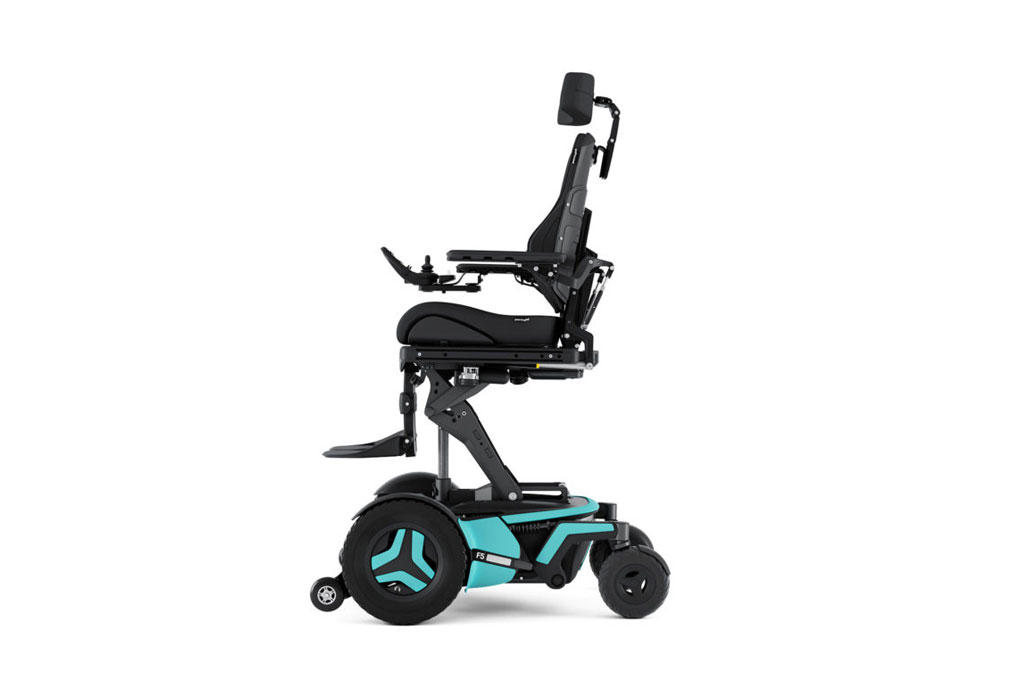

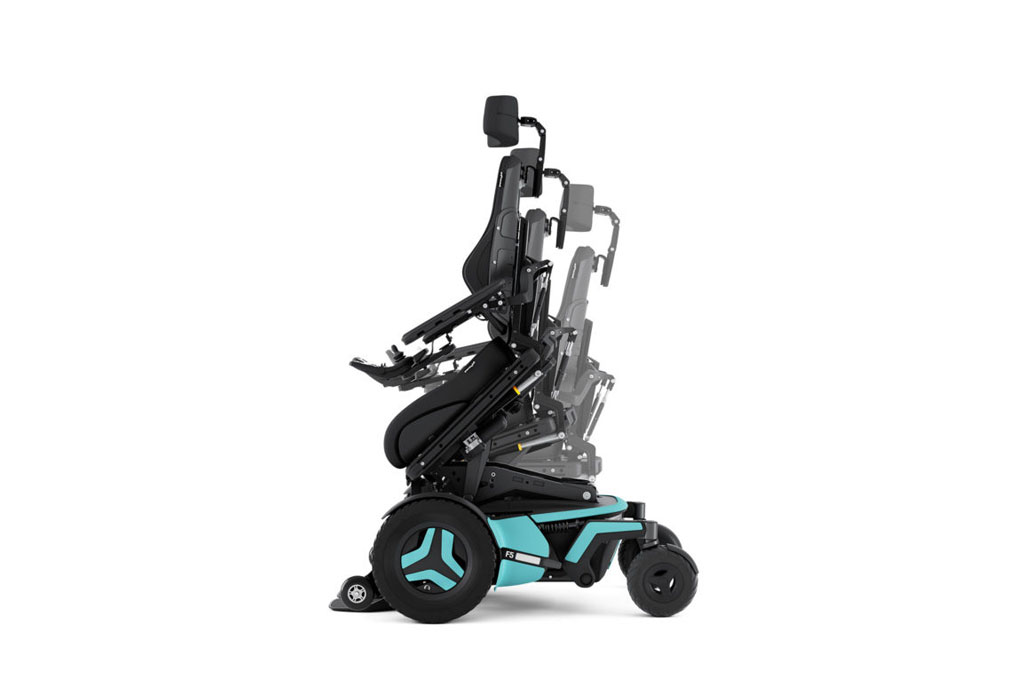

ActiveHeight & ActiveReach

The new seat elevator utilizes 3 points of contact and shifts the seat rearward as it elevates to maintain an unimaginable level of stability even at full elevation.

Comfort is King

Corpus®, the world’s leading ergonomic seating system, just got better. Biomechanically optimised power positioning has been enhanced with Corpus Ergo Seat cushion with redesigned pelvic well and new Corpus Ergo backrest cushions with dual density foam. New Stretch-Air cover option is a breathable, machine washable fabric with a low moisture vapor transfer.

Low Seat-to-Floor Height

Seat-to-floor-height options as low as 17.5″ with all power seat functions means an improved accessibility to our world.

MyPermobil App

With Connect-equipped chairs, the MyPermobil app helps you get more out of your power wheelchair by sending relevant status updates directly to your smartphone in real time.

MyPermobil features in-app educational resources, battery charge status, an interactive map and seat activity usage data to help improve communication with healthcare and service providers.

Accessories

Lightning Mobility

Crutch Holder

Lightning Mobility

Essentials Carrier

Lightning Mobility

Medical Bag

Lightning Mobility

Phone Holder

Lightning Mobility

Push Handles

Lightning Mobility

Tablet Holder

Lightning Mobility

Transfer Handles

Lightning Mobility

Tray Table

Lightning Mobility

USB Charger

Specifications

Maximum User Weight
136 kg
Maximum Speed
10km/h, 12 km/h
Driving Range
25 km
Base Width
25.5"
Base Length
38" (42" w/ anti-tippers)
Minimum Turning Radius
30"
Ground Clearance
3"
Drive Electronics
R-net 120A
Battery Type
72 amp Gel
Optional Seat Elevator
14"
Seat to Floor Height
17.5", 18.5", 19.5"
Power Tilt Options
0° - 50° Posterior, 5º, 10°, 20° & 45° Anterior
Recline Options
85º-120° (MANUAL), 85º-180° (POWER)
Legrest Elevation
85° - 170°
Armrest Pad Lengths
10", 13", 16" & 18"
Seat Widths
17" - 23" (by 2" increments)
Seat Depths
14" - 22" (by 1" increments)
Backrest Heights
20", 23" - 28" (by 1" incr.)

Frame Colours

Colour Options: Aqua

Base Aqua
