Micros 130
Patient Handling

Micros 130

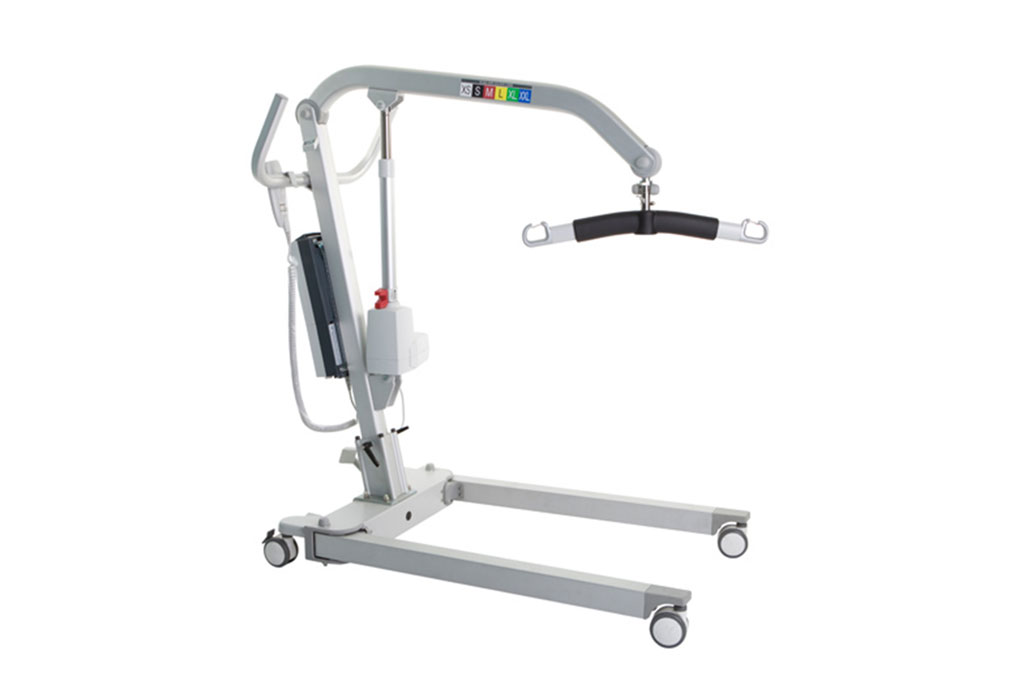

The MICROS 130 is a compact ergonomic designed medium sized heavy duty mobile patient lifting hoist with a safe working load of 130kg. This lifter is ideally suited as a compact and lightweight hoist for the smaller patient in a home care environment. The MICROS 130 whilst being compact provides superior patient space.

The MICROS 130 in fact offers more patient space than most other lifters of this size. The swivel feature of the detachable yoke allows a patient to be rotated through 360° at full lift height, thus making the carer’s job easier and safer.

The MICROS 130 lifting range allows patients to be lifted from the floor, bed or chair with ease and safety. The MICROS 130 is a powered unit using trusted industry leading LINAK components, giving a safe working load (SWL) of 130kg.

Lightning Mobility

Product Information

Details

Options

Specifications

Details

  • Aluminium Lift with a Safe Working Load (SWL) of 130kg
  • Electric raise and lower powered by Linak
  • Foot pedal control for leg adjustment
  • Quick release yoke
  • Equipped with 100mm front castors and 125mm locking rear castors
  • Quick release structure enables quicker more compact disassembling

The range of patient lifting equipment, including lifters, slings and accessories, has been designed and tested to comply with AS ISO 10535 – 2011, (Hoists for the transfer of disabled persons – Requirements and test methods)

Options

Lightning Mobility

Weighing Device

Lightning Mobility

Yoke Spreader Bar Standard

Specifications

MAX LOAD
130kg
L-Max
151
L-Min
30
A-Max
173
A-Min
103
B
104
B1
82
C
57.6~94.2
D
47.4~84.2
E
94.5
F
11.2
F1
46kg
G
89.5
NW
31kg
Turning Radius:
117
