Details

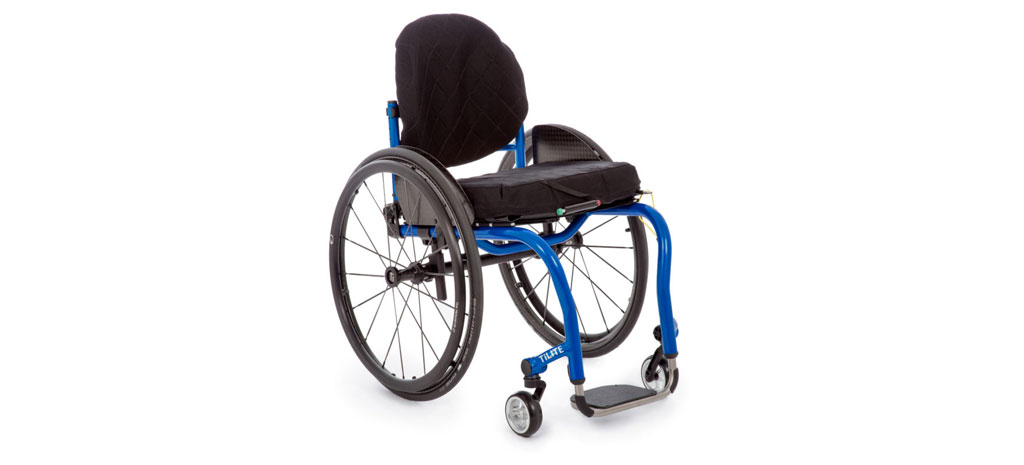

Aero Z Innovation
The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.
Adjustable Camber Mount incorporates TiLite’s Tru-Fit system with up to 3.5″ of rear seat height adjustment.
Patented Speedloader Adjustable Front Caster Housing quickly and accurately adjusts fork angle in 1° increments.
Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels.
TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.
Specifications
Frame Material
Aluminum (Titanium Upgrade Available)
Adjustability
Full Adjustability
Growable
Optional (Depth Adjustable Back/Frame)
Front Seat Height
16" - 21"
Rear Seat Height
12.5" - 21"
Transit Options
Transit Tie-Down, Transport Bracket
Warranty
Lifetime on Frame, One Year on TiLite Components
Frame Colours
Colour: Anodized Paint
Black
Burnt Orange
Ultraviolet
Fuchsia
Red Pepper
Sapphire
Colour: Candy Paint
Azure Blue
Electric Plum
RubyRed
Colour: Gloss Paint
Black
Neon Pink
Paint TiLite Red
Colour: Matte Paint
Black Lava
Titanium Grey
Flame Orange
Hyper Blue
OD Green
Colour: Metallic Paint
Acid Green
Ocean Blue
Tangerine
Nautral Titanium Satin
Colour: Pearlescent Paint
Midnight Blue Pearl
White Pearl
Colour: Tattoo Finishes
